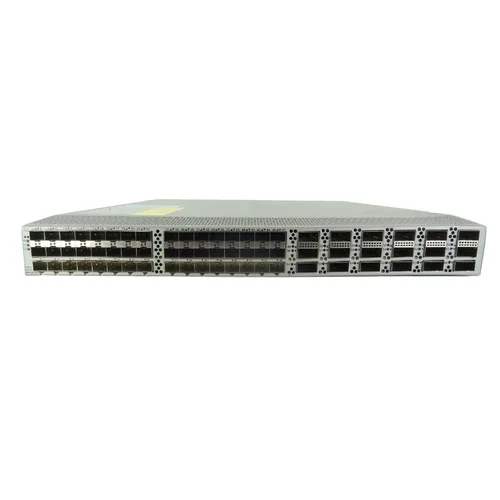

Коммутатор Cisco Nexus N9K-C92300YC

Enterprise Services Package

LAN_ENTERPRISE_SERVICES_PKG

N95-LAN1K9 (for Cisco Nexus 9500 Series switches)

N93-1G-LAN1K9 (for the Cisco Nexus N9K-C9348GC-FXP switch)

N93-LAN1K9 (for Cisco Nexus 9200, 9300, 9300-EX, and 9300-FX/FX2 Series switches, except the Cisco Nexus N9K-C9348GC-FXP switch)

N93-LAN1K9-XF2 (for the Cisco Nexus 9364C and 9300-GX switches)

• Open Shortest Path First (OSPF) Protocol
• Border Gateway Protocol (BGP)
• Intermediate System-to-Intermediate System (IS-IS) Protocol (Layer 3 only)
• Protocol Independent Multicast (PIM), which includes sparse mode, bidirectional mode, and Source Specific Multicast (SSM) mode
• Multicast Source Discovery Protocol (MSDP)
• Policy-Based Routing
• Generic Routing Encapsulation (GRE) Tunnels
• Enhanced Interior Gateway Routing Protocol (EIGRP)
• VRF route leaking
• VXLAN BGP EVPN
• Non-blocking multicast (NBM) - for the IP fabric for media solution.

Note
The IP fabric for media solution also requires the N93-LAN1K9 or N95-LAN1K9 license for multicast.

N95-FAB1K9

N93-FAB1K9

• InterAS option B
• Layer 3 EVPN over segment routing MPLS
• MPLS Layer 3 VPN
• Pervasive Load Balancing (PLB)
• Tenant Routed Multicast
• VXLAN EVPN Multi-Site
• Enhanced PBR (EPBR)

Network Services Package

NETWORK_SERVICES_PKG

N95-SERVICES1K9

N93-SERVICES1K9

• iCAM
• Intelligent Traffic Director (ITD)
• Non-blocking multicast (NBM) - for the IP fabric for media solution.
• Note
• The IP fabric for media solution also requires the N93-LAN1K9 or N95-LAN1K9 license for multicast.
• Smart channel

Note
Beginning with Cisco Nexus NX-OS 9.3(5), Catena is no longer available. However, Catena is available with the Essentials license package of earlier releaes.

FCoE NPV Package

FCOE_NPV_PKG

N95-FNPV1K9

N93-FNPV1K9

• FCoE NPV

Note
The N93-16Y-SSK9 and N93-48Y-SSK9 licenses also support FCoE NPV. If you install one of these licenses (rather than N95-FNPV1K9 or N93-FNPV1K9), the show license command does not show FCoE NPV in the output. For more information, see the Cisco Nexus 9000 Series NX-OS FC-NPV and FCoE-NPV Configuration Guide.
