Поставляется с 16 активированными портами 2, 4 и 8 Гбит/с.,
В комплекте 2 блока питания AC

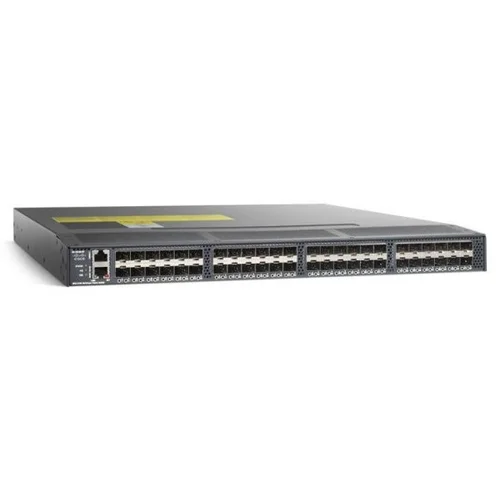

Cisco MDS 9148 Multilayer Fabric Switch - доступный, универсальный, легко управляемый коммутатор для сетей SAN начального уровня и для сетей отделов предприятий. Коммутатор, выполненный на специализированных ИС для сетей хранения типа «коммутатор на кристалле», обеспечивает выделенную полосу пропускания Fibre Channel 8 Гбит/с на каждом Cisco MDS 9148 поставляется в полной 48-портовой конфигурации.
Minimum software requirements
● Cisco MDS 9000 NX-OS Software Release 5.0(1) supporting Cisco MDS 9148 and Cisco Fabric Manager
● Cisco MDS 9000 NX-OS Release 5.2(1) supporting Cisco DCNM for SAN
● Zero-touch installation capability is scheduled for a future release of Cisco MDS 9000 NX-OS Software
Performance and port configuration
● Port speed: 8-, 4-, 2-, and 1-Gbps autosensing with 8 Gbps of dedicated bandwidth per port
● Buffer credits: Up to 128 for a group of 4 ports, with a default of 32 buffer credits per port and a maximum of 125 buffer credits for a single port in the group
● Ports per chassis: Up to 48 8-Gbps ports
◦ Base configuration with 16 ports; additional configurations for 32 and 48 ports available
◦ Upgrade ports in 8-port increments from any configuration with the port activation license
● PortChannel: Up to 16 ports in a PortChannel with automatic load balancing
Security
● VSAN fabric isolation
● Intelligent packet inspection @ port level
● Hardware zoning by access control lists (ACLs)
● Extended broadcast zoning
● FC-SP switch-to-switch authentication
● FC-SP host-to-switch authentication
● RBAC using RADIUS or TACACS+ authentication, authorization, and accounting (AAA) functions
● Management access
● Secure FTP (SFTP)
● Secure Shell Version 2 (SSHv2)
● Simple Network Management Protocol Version 3 (SNMPv3) implementing Advanced Encryption Standard (AES)
● Control-plane security
Virtual Computing Environment (VCE) coalition
Cisco MDS 9148 is supported as a VCE coalition option for Vblock1®, Vblock2®, Vblock™ 300, and Vblock™ 700
Compatibility
Fibre Channel protocols
● FC-PH, Revision 4.3 (ANSI/INCITS 230-1994)
● FC-PH, Amendment 1 (ANSI/INCITS 230-1994/AM1 1996)
● FC-PH, Amendment 2 (ANSI/INCITS 230-1994/AM2-1999)
● FC-PH-2, Revision 7.4 (ANSI/INCITS 297-1997)
● FC-PH-3, Revision 9.4 (ANSI/INCITS 303-1998)
● FC-PI, Revision 13 (ANSI/INCITS 352-2002)
● FC-PI-2, Revision 10 (ANSI/INCITS 404-2006)
● FC-PI-3, Revision 2.1 (BSR INCITS 460-200x)
● FC-PI-4, Revision 8.0 (INCITS 450-2009)
● FC-FS, Revision 1.9 (ANSI/INCITS 373-2003)
● FC-FS-2, (BSR INCITS 424-200x)
● FC-FS-3, Revision 0.9 (BSR INCITS PN-1861-D-200x)
● FC-LS, Revision 1.62 (ANSI/INCITS 433-2007)
● FC-AL, Revision 4.5 (ANSI/INCITS 272-1996)
● FC-AL-2, Revision 7.0 (ANSI/INCITS 332-1999)
● FC-AL-2, Amendment 1 (ANSI/INCITS 332-1999/AM1-2003)
● FC-AL-2, Amendment 2 (ANSI/INCITS 332-1999/AM2-2006)
● FC-SW-2, Revision 5.3 (ANSI/INCITS 355-2001)
● FC-SW-3 , Revision 6.6 (ANSI/INCITS 384-2004)
● FC-SW-4, Revision 7.5 (ANSI/INCITS 418-2006)
● FC-SW-5, (BSR INCITS 461-200x)
● FC-GS, (ANSI INCITS 288-1999)
● FC-GS-3, Revision 7.01 (ANSI/INCITS 348-2001)
● FC-GS-4, Revision 7.91 (ANSI/INCITS 387-2004)
● FC-GS-5, (ANSI INCITS 427-2007)
● FC-GS-6, (BSR INCITS 463-200x)
● FC-BB, Revision 4.7 (ANSI/INCITS 342-2001)
● FC-BB-2, Revision 6.0 (ANSI/INCITS 372-2003)
● FC-BB-3, Revision 6.8 (ANSI/INCITS 414-2006)
● FCP, Revision 12 (ANSI/INCITS 269-1996)
● FCP-2, Revision 8 (ANSI/INCITS 350-2003)
● FCP-3, Revision 4 (ANSI/INCITS 416-2006)
● FCP-4, (BSR INCITS PN-1828-D-200x)
● FC-SB-2, Revision 2.1 (ANSI/INCITS 349-2001)
● FC-SB-3, Revision 1.6 (ANSI/INCITS 374-2003)
● FC-VI, Revision 1.84 (ANSI/INCITS 357-2002)
● FC-FLA, Revision 2.7 (INCITS TR-20-1998)
● FC-PLDA, Revision 2.1 (INCITS TR-19-1998)
● FC-Tape, Revision 1.17 (INCITS TR-24-1999)
● FC-MI, Revision 1.92 (INCITS TR-30-2002)
● FC-MI-2, Revision 2.6 (INCITS TR-39-2005)
● FC-SP, Revision 1.6 (ANSI/INCITS 426-2007)
● FC-DA, Revision 3.1 (INCITS TR-36-2004)
● SNPing (ANSI INCITS 443-2008)
● MIB-FA (INCITS/TR-32:2003 (R2008))
● FAIS Revision 1
● Extensive IETF-standards-based TCP/IP, SNMPv3, and Remote Monitoring (RMON) MIBs
● Class of service: Classes 2, 3, and F
● Fibre Channel standard port types: E, F, and FL
● Fibre Channel enhanced port types: SD, and TE
Fabric services
● Name server
● Registered state change notification (RSCN)
● Login services
● Broadcast
● In-order delivery
● Name-server zoning
Advanced services
● NPIV
● VSANs
● PortChannels
● NPV mode
● FlexAttach
● F-port trunking and channeling
● IVR
Diagnostics and troubleshooting tools
● POST diagnostics
● Online diagnostics
● Internal loopbacks
● SPAN (remote SPAN not supported)
● Fibre Channel traceroute
● Fibre Channel ping
● Fibre Channel debug
● Cisco Fabric Analyzer
● Syslog
● Port-level statistics
Management
● Access methods
◦ Out-of-band 10/100/1000 Ethernet port
◦ EIA/TIA-232 serial console port
◦ In-band management using IP over Fibre Channel
● Access protocols
◦ CLI
◦ SNMP
◦ SMI-S
● Security
◦ RBAC using RADIUS or TACACS+ authentication, authorization, and accounting (AAA) functions
◦ VSAN-based roles
◦ SSHv2
◦ SNMPv3
Management applications
● Zero-Touch Installation deployment and provisioning with DHCP (scheduled for a future release of Cisco MDS 9000 NX-OS Software)
● Cisco MDS 9000 Family CLI
● Quick Configuration Wizard
● Cisco Device Manager
● Cisco DCNM for SAN Essentials Edition
● Cisco DCNM for SAN Advanced Edition (optional software package)
Availability
● Nondisruptive In-Service Software Upgrade (ISSU)
● Process monitoring and stateful process restart
● Per-VSAN fabric services
● Redundant, hot-swappable power supplies and redundant, hot-swappable power supply and fan trays
● Hot-swappable SFP and SFP+ optics
● PortChannels aggregating up to 16 ports with redundant load balancing
● F-port channeling and trunking
● Online diagnostics
Serviceability
● Configuration file management
● Call Home
● Port beaconing
● System LEDs
● SNMP traps for alerts
Environmental
● Physical dimensions (H x W x D) of 1RU: 1.72 x 17.16 x 18.89 in. (4.47 x 43.59 x 47.98 cm)
● Weight of switch with dual power supplies: 22.2 lb (10 kg)
● Ambient operating temperature: 32 to 104°F (0 to 40°C)
● Ambient nonoperating temperature: -40 to 158°F (-40 to 70°C)
● Humidity (RH), ambient (noncondensing) operating: 10 to 90%
● Humidity (RH), ambient (noncondensing) nonoperating and storage: 5 to 95%
● Operating altitude: -197 to 6500 ft (-60 to 2000m)
Power and cooling
● Power supplies (300W AC) (maximum of 2 per switch)
◦ AC Input: 100 to 240 VAC nominal (+/-10% for full range)
◦ Frequency: 50 to 60 Hz nominal (+/-3 Hz for full range)
◦ Maximum power consumption:
- With 4-Gbps optics (48 ports fully populated): 99W with 0.89A at 110 VAC and 0.45A at 220 VAC
- With 8-Gbps optics (48 ports fully populated): 101W with 0.90A at 110 VAC and 0.46A at 220 VAC
● Airflow: Rear to front (toward ports)
Safety
● UL 60950 -1
● CAN/CSA-C22.2 No. 60950 -1
● EN 60950 -1
● IEC 60950 -1
● AS/NZS 60950
● IEC 60825
● EN 60825
● 21 CFR 1040
EMC
● FCC Part 15 (CFR 47) Class A
● ICES-003 Class A
● EN55022 Class A
● CISPR22 Class A
● AS/NZS CISPR22 Class A
● VCCI Class A
● EN55024
● KN24
● EN50082-1
● EN61000-3-2
● EN61000-3-3
● EN61000-6-1
● CISPR24
● NEBS
● GR-63-Core NEBS Level 3
● GR-1089-Core NEBS Level 3
● ETSI
● ETS 300 019 Storage Class 1.1
● ETS 300 019 Transportation Class 2.3
● ETSI 300 019 Stationary Use Class 3.1
Тип коммутатора | |
---|---|
Тип коммутатора | Управляемый L2 |
Линейка Cisco | MDS 9100 |
Интерфейсы | |
Количество основных портов | 48 |
