В комплект входит:
- Блок питания AC - 2 шт
- Вентиляторные модули - 3 шт
Крепления и лицензии в комплект не входят

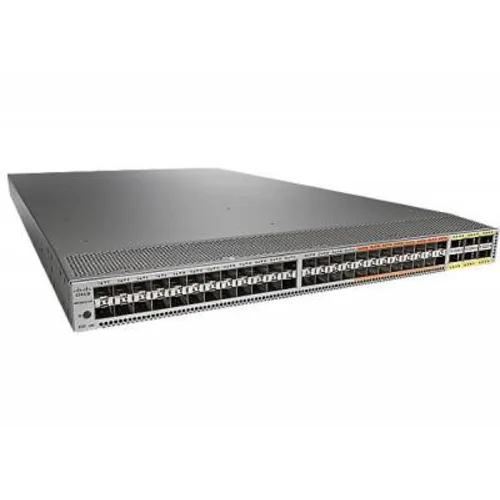

Особенности Cisco Nexus N5K-C5672UP:
- 32 фиксированных порта 1/10G (Ethernet/FCoE)
- +16 унифицированных портов 1/10G (Ethernet/FCoE) или 2/4/8G FC
- + 6 x 40G QSFP+ (4x10G или 40G), (Ethernet/FCoE)
- 2 слота для БП hot swap (1+1) - (F2B или B2F for cooling)
- 3 слота для вент. модулей hot swap (2+1) - (F2B или B2F for cooling)
Общие характеристики:
- L2, L3, Security, QoS, SPAN/ERSPAN, Multicast, Sampled NetFlow, vPC, ECMP
- Поддержка Fibrer Channel на унифицированных портах
- Мониторинг заполняемости буферов на портах и очередях QoS
- Отказоустойчивые, поддерживающие горячую замену БП (AC/DC) и вентиляторы
- F2B, B2F охлаждение
Технические характеристики
| QoS |
Layer 2 IEEE 802.1p (class of service [CoS]) 8 unicast queues and 8 multicast queues per port Per-port QoS configuration CoS trust Port-based CoS assignment Modular QoS CLI (MQC) compliance: IPv4 and IPv6 ACL-based QoS classification (Layers 2, 3, and 4) Flexible TCAM carving MAC and ARP hardware carving MQC CoS marking Per-port virtual output queuing CoS-based egress queuing Egress strict-priority queuing Egress port-based scheduling: Deficit Weighted Round-Robin (DWRR) Control-Plane Policing (CoPP): IPv4 and IPv6 |
| Безопасность |
Ingress ACLs (standard and extended) on Ethernet and virtual Ethernet ports Standard and extended Layer 2 ACLs: MAC addresses, protocol type, etc. Standard and extended Layer 3 and 4 ACLs: IPv4 and IPv6, Internet Control Message Protocol (ICMP and ICMPv6), TCP, User Datagram Protocol (UDP), etc. Ingress policing VLAN-based ACLs (VACLs) Port-based ACLs (PACLs) Named ACLs Optimized ACL distribution ACLs on virtual terminals (vtys) ACL logging (IPv4 only) Dynamic Host Configuration Protocol (DHCP) snooping with Option 82 Dynamic ARP Inspection IP source guard DHCP relay (up to 32 destinations) Ethernet port security IPv6 RACL, PACL, and VACL iSCSI type-length-value (TLV) |
|
|
|
| Стандарты | |
| Промышленные стандарты |
IEEE 802.1D: Spanning Tree Protocol IEEE 802.1p: CoS prioritization IEEE 802.1Q: VLAN tagging IEEE 802.1Qaz: Enhanced transmission selection IEEE 802.1Qbb: Per-priority Pause IEEE 802.1s: Multiple VLAN instances of Spanning Tree Protocol IEEE 802.1w: Rapid reconfiguration of Spanning Tree Protocol IEEE 802.3: Ethernet IEEE 802.3ad: LACP with fast timers IEEE 802.3ae: 10 Gigabit Ethernet IEEE 802.3ba: 40 Gigabit Ethernet (Applies to 40G SR4, SR4-S, LR4, LR4-S, and CSR4 optics only) SFF 8431 SFP+ CX1 support RMON |
| Соответствие требованием | Products should comply with CE Markings according to directives 2004/108/EC and 2006/95/EC. |
| Безопасность |
UL 60950-1 Second Edition CAN/CSA-C22.2 No. 60950-1 Second Edition EN 60950-1 Second Edition IEC 60950-1 Second Edition AS/NZS 60950-1 GB4943 |
| EMC: Emissions |
47CFR Part 15 (CFR 47) Class A AS/NZS CISPR22 Class A CISPR22 Class A EN55022 Class A ICES003 Class A VCCI Class A EN61000-3-2 EN61000-3-3 KN22 Class A CNS13438 Class A |
| EMC: Immunity |
EN55024 CISPR24 EN300386 KN 61000-4 series |
| RoHS | The product is RoHS 6 compliant with exceptions for leaded ball grid array (BGA) balls and lead press-fit connectors. |
| Размеры (ВхШхГ) |
Cisco Nexus 5672UP и 5672UP-16G: (4.4 х 43.9 х 76.2 см) Cisco Nexus 56128P: (8,8 х 43,9 х 76,2 см) |
| Рабочая температура | от 0 до 40 °С |
| Температура хранения | от -40 до 70 °C |
| Влажность | От 5 до 95% (без конденсации) |
| Вес |
Cisco Nexus 5672UP / 5672UP-16G: 15 кг Cisco Nexus 56128P: 27 кг |
Информация для заказа
| Шасси | |
| N5K-C5672UP-16G | Cisco Nexus 5672UP-16G 1RU, 24p 10-Gbps SFP+, 24 Unified Ports, 6p 40G QSFP+ |
| N5K-C5672UP-16G= | Cisco Nexus 5672UP-16G 1RU, 24p 10-Gbps SFP+, 24 Unified Ports, 6p 40G QSFP+, Spare |
| N5K-C5672UP | Cisco Nexus 5672UP 1RU, 32 p 10-Gbps SFP+, 16 Unified Ports, 6p 40G QSFP+ |
| N5K-C5672UP= | Cisco Nexus 5672UP 1RU, 32 p 10-Gbps SFP+, 16 Unified Ports, 6p 40G QSFP+, Spare |
| N5K-C56128P | Cisco Nexus 56128P 2RU, 48x 10-Gbps SFP+, 4 x 40G QSFP+ Fixed Ports (Base) |
| N5K-C56128P= | Cisco Nexus 56128P 2RU, 48x 10-Gbps SFP+, 4 x 40G QSFP+ Fixed Ports, Spare (Base) |
| Вентиляторы | |
| N6K-C6001-FAN-F | Cisco Nexus 5672UP/5672UP-16G Fan Module, Front-to-Back (Fan Side Intake) Airflow |
| N6K-C6001-FAN-F= | Cisco Nexus 5672UP/5672UP-16G Fan Module, Front-to-Back (Fan Side Intake) Airflow, spare |
| N6K-C6001-FAN-B | Cisco Nexus 5672UP/5672UP-16G Fan Module, Back-to-Front (Port Side Intake) Airflow |
| N6K-C6001-FAN-B= | Cisco Nexus 5672UP/5672UP-16G Fan Module, Back-to-Front (Port Side Intake) Airflow, spare |
| N56128-FAN-B= | Cisco Nexus 56128P Fan Module, Back-to-Front (Port Side Intake) Airflow, spare |
| N56128-FAN-B | Cisco Nexus 56128P Fan Module, Back-to-Front (Port Side Intake) Airflow |
| N56128-FAN-F= | Cisco Nexus 56128P Fan Module, Front-to-Back (Fan Side Intake) Airflow, spare |
| N56128-FAN-F | Cisco Nexus 56128P Fan Module, Front-to-Back (Fan Side Intake) Airflow |
| Модули расширения | |
| N56-M24UP2Q | Cisco Nexus 56128P Expansion Module, 24x 10-Gbps SFP+ UP, 2 x QSFP+ fixed ports |
| N56-M24UP2Q= | Cisco Nexus 56128P Expansion Module, 24x 10-Gbps SFP+ UP, 2 x QSFP+ fixed ports, Spare |
| Блоки питания | |
| N55-PDC-1100W(=) | Cisco Nexus 5500/6000/5600 PSU Front-to-Back Airflow module spare, DC, - 40 to -72VDC, 1100W |
| N55-PAC-1100W(=) | Cisco Nexus 5500/6000/5600 PSU Front-to-Back Airflow module spare, AC, 94 to 240 VAC, 1100W |
| NXA-PAC-1100W(=) | Cisco Nexus 5500/6000/5600 Platinum PSU Front-to-Back Airflow module spare, A/C, 100-240V, 1100W |
| NXA-PAC-1100W-B(=) | Cisco Nexus 5500/6000/5600 Platinum PSU Back-to-Front Airflow module spare, A/C, 100-240V, 1100W |
| NXA-PHV-1100W(=) | Cisco Nexus 5500/6000/5600 Platinum HV-AC-DC PS, Front-to-Back Airflow module spare, 1100W |
| NXA-PHV-1100W-B(=) | Cisco Nexus 5500/6000/5600 Platinum HV-AC-DC PS, Back-to-Front Airflow module spare, 1100W |
| Программное обеспение | |
| N6KUK9-730N1.1A | Cisco Nexus 5600/6000 Base OS Software Rel 7.3(0)N1(1) |
| N6KUK9-730N1.1A= | Cisco Nexus 5600/6000 Base OS Software Rel 7.3(0)N1(1), spare |
| N6KUK9-707N1.1 | Cisco Nexus 5600/6000 Base OS Software Rel 7.0(7)N1(1) |
| Кабели питания | |
| CAB-250V-10A-AR | AC Power Cord - 250V, 10A - Argentina (2.5m) |
| CAB-9K10A-AU | Power Cord, 250VAC 10A 3112 Plug, Australia (2.5m) |
| CAB-250V-10A-BR | AC Power Cord - 250V, 10A - Brazil(2.1m) |
| CAB-250V-10A-CN | AC Power Cord - 250V, 10A - PRC (2.5m) |
| CAB-9K10A-EU | Power Cord, 250VAC 10A CEE 7/7 Plug, EU (2.5m) |
| CAB-IND-10A | 10A Power cable for India (2.5m) |
| CAB-250V-10A-IS | AC Power Cord - 250V, 10A - Israel (2.5m) |
| CAB-9K10A-IT | Power Cord, 250VAC 10A CEI 23-16/VII Plug, Italy (2.5m) |
| CAB-250V-10A-ID | AC Power Cord - 250V, 10A, South Africa(2.5m) |
| CAB-9K10A-SW | Power Cord, 250VAC 10A MP232 Plug, SWITZ (2.5m) |
| CAB-9K10A-UK | Power Cord, 250VAC 10A BS1363 Plug (13 A fuse), UK (2.5m) |
| CAB-9K12A-NA | Power Cord, 125VAC 13A NEMA 5-15 Plug, North America (2.5m) |
| CAB-AC-250V/13A | North America, NEMA L6-20 250V/20A plug-IEC320/C13 receptacle (2.0m) |
| CAB-N5K6A-NA | Power Cord, 200/240V 6A North America (2.5m) |
| CAB-C13-CBN | Cabinet Jumper Power Cord, 250 VAC 10A, C14-C13 Connectors (0.7m) |
| CAB-C13-C14-2M | Power Cord Jumper, C13-C14 Connectors, 2 Meter Length (2m) |
| CAB-C13-C14-AC | Power cord, C13 to C14 (recessed receptacle), 10A (3m) |
| Аксессуары | |
| N5596-ACC-KIT= | Cisco Nexus 56128P Chassis Accessory Kit, spare |
| N5672-ACC-KIT= | Cisco Nexus 5672UP/5672UP-16G Chassis Accessory Kit, spare |
| Трансиверы и патч-корды | |
| FET-10G | 10-Gbps SFP+ module for Cisco Nexus 2000 Series to Cisco Nexus 5000 Series connectivity |
| SFP-10G-SR | 10GBASE-SR SFP+ module (multimode fiber [MMF]) |
| SFP-10G-SR-S | 10GBASE-SR SFP Module, Enterprise-Class |
| SFP-10G-LR | 10GBASE-LR SFP+ module (single-mode fiber [SMF]) |
| SFP-10G-LR-S | 10GBASE-LR SFP Module, Enterprise-Class |
| SFP-10G-ER | 10GBASE-ER-SFP+ module (SMF |
| SFP-10G-ER-S | 10GBASE-ER SFP Module, Enterprise-Class |
| SFP-H10GB-CU1M | 10GBASE-CU SFP+ cable, 1m (Twinax cable) |
| SFP-H10GB-CU1.5M | 10GBASE CU SFP+ cable, 1.5m (passive Twinax cable) |
| SFP-H10GB-CU2M | 10GBASE CU SFP+ cable, 2m (passive Twinax cable) |
| SFP-H10GB-CU2.5M | 10GBASE CU SFP+ cable, 2.5m (passive Twinax cable) |
| SFP-H10GB-CU3M | 10GBASE-CU SFP+ cable, 3m (Twinax cable) |
| SFP-H10GB-CU5M | 10GBASE-CU SFP+ cable, 5m (Twinax cable) |
| SFP-H10GB-ACU7M | 10GBASE-CU SFP+ cable, 7m (active Twinax cable) |
| SFP-H10GB-ACU10M | 10GBASE-CU SFP+ cable, 10m (active Twinax cable) |
| SFP-10G-AOC1M | 10GBASE-AOC SFP+ cable, 1m |
| SFP-10G-AOC2M | 10GBASE-AOC SFP+ cable, 2m |
| SFP-10G-AOC3M | 10GBASE-AOC SFP+ cable, 3m |
| SFP-10G-AOC5M | 10GBASE-AOC SFP+ cable, 5m |
| SFP-10G-AOC7M | 10GBASE-AOC SFP+ cable, 7m |
| SFP-10G-AOC10M | 10GBASE-AOC SFP+ cable, 10m |
| GLC-T | 1000BASE-T SFP |
| GLC-ZX-SMD | 1000BASE-ZX SFP transceiver module, SMF, 1550-nm wavelength, dual LC/PC connector, digital optical monitoring (DOM); not supported on Cisco Nexus 5672UP-16G |
| GLC-SX-MMD | Gigabit Ethernet SFP, LC connector SX transceiver (MMF), extended temperature range and DOM |
| GLC-EX-SMD | 1000BASE-EX SFP transceiver module, SMF, 1310-nm wavelength, dual LC/PC connector, digital optical monitoring (DOM); not supported on Cisco Nexus 5672UP-16G |
| GLC-LH-SMD | Gigabit Ethernet SFP, LC connector LX/LH transceiver (SMF), extended temperature range and DOM |
| SFP-GE-T | 1000BASE-T SFP, extended temperature range; not supported on Cisco Nexus 5672UP-16G |
| DS-SFP-FC16G-SW | 16-Gbps Fibre Channel shortwave SFP+, LC connector (16-Gbps Fibre Channel support only on last 24 ports of Cisco Nexus 5672UP-16G) |
| DS-SFP-FC16G-LW | 16-Gbps Fibre Channel longwave SFP+, LC connector (16-Gbps Fibre Channel support only on last 24 ports of Cisco Nexus 5672UP-16G) |
| DS-SFP-FC8G-SW | 8-Gbps Fibre Channel shortwave SFP+, LC connector (Fibre Channel support only on last 24 ports of Cisco Nexus 5672UP-16G, on last 16 ports of Cisco Nexus 5672UP, and on GEM on Cisco Nexus 56128P) |
| DS-SFP-FC8G-LW | 8-Gbps Fibre Channel longwave SFP+, LC connector (Fibre Channel support only on last 24 ports of Cisco Nexus 5672UP-16G, on last 16 ports of Cisco Nexus 5672UP, and on GEM on Cisco Nexus 56128P) |
| DS-SFP-FC4G-SW | 4-Gbps Fibre Channel shortwave SFP, LC connector (Fibre Channel support only on last 16 ports of Cisco Nexus 5672UP and on GEM on Cisco Nexus 56128P) |
| DS-SFP-FC4G-LW | 4-Gbps Fibre Channel long-wave SFP, LC connector (Fibre Channel support only on last 16 ports of Cisco Nexus 5672UP and on GEM on Cisco Nexus 56128P) |
| Тип коммутатора | |
|---|---|
| Тип коммутатора | Управляемый L3 |
| Линейка Cisco | Nexus 5000 |
| Интерфейсы | |
| Тип основных портов | 10GigabitEthernet SFP+ |
| Интерфейсы 10GBase-X SFP+ | 48 |
| Интерфейсы 40GBase-X | 6 |
| Консольный порт | RJ45 |
| Количество основных портов | 48 |
| Тип Uplink портов | 40GigabitEthernet QSFP+ |
| Питание | |
| Напряжение питания | ~220V AC |
| Допустимое напряжение питания | 94-240V AC |
| L2 функционал | |
| Количество VLAN | 4096 |
| Размер таблицы MAC адресов | 256000 |
| Количество правил ACL | 4000 |
| Агрегирование портов | LACP |
| Характеристики | |
| Размещение | Монтируемые в стойку |
